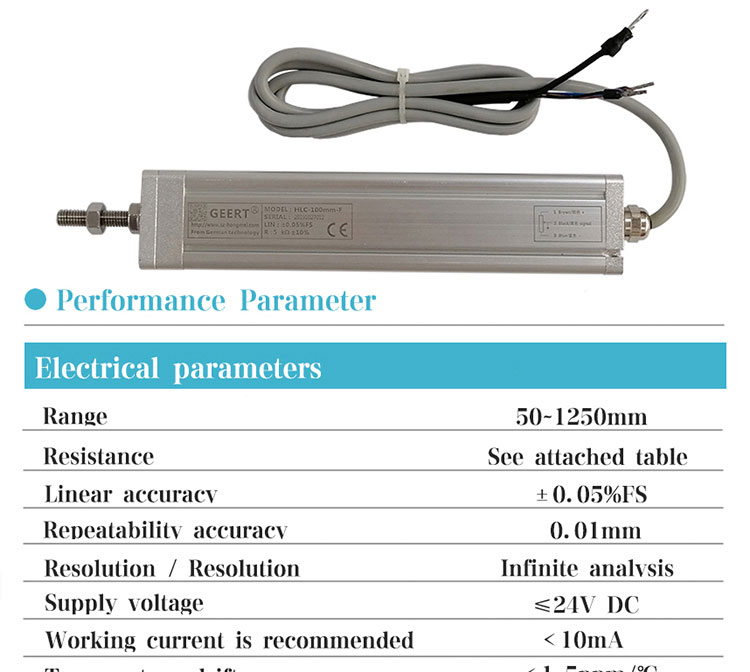

| Brief introduction：The linear displacement sensor based on potentiometer principle is a linear displacement sensor with sliding rheostat structure. The sensor can supply 5V or 10V power, output 0-5V, 0-10V voltage signal, or 12-24V power supply. It is equipped with transmission module to output 0-5V, 0-10V, 4-20mA analog signal, which is convenient to connect with PLC control system for processing and calculation.

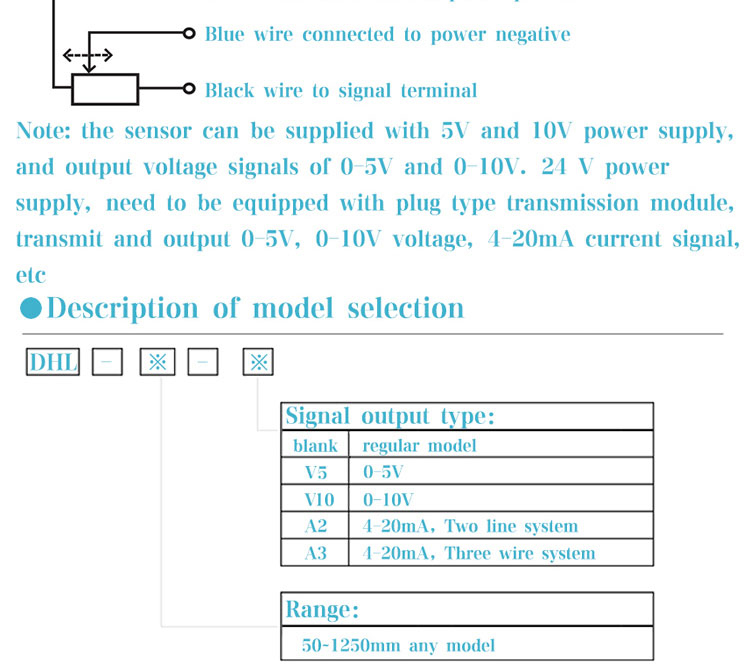

The common wiring methods of displacement sensor are: two wire system, three wire system and four wire system. The displacement sensor with 4-20mA current signal can adopt two-wire wiring method. The power supply, senso...... [MORE] |
